Wireless AV camera

 6,000

Description

  • It is composed of a double lens, which allows to take both front and back images
  • It is supported with global positioning system, so that you can track the whole drive
  • It also consists of an internal gravity sensor
  • You may apply a password to keep your data secure
  • It also supports video playback mode
Ultra-small wireless camera kit with built-in microphone and 4-channel, 380 tv lines sharp picture display camera.
Low radiation, safe, and healthy.
Small size, light weight, low power consumption.
High sensibility, easy operation and installation.
Suitable for monitoring children, old people and houses, companies, shops and factories, etc

Technical Specification:
Camera:

  • Camera Apparatus: CMOS Camera
  • System: PAL/CCIR NTSC/EIA
  • Validity Pixel: PAL: 628 x 582; NTSC: 510 x 492
  • Picture Area: PAL: 5.78 x 4.19mm
  • NTSC: 4.69 x 3.45mm
  • Horizontal Definition: 380Line
  • Scan Frequency: PAL/CCIR: 50HZ NTSC/EIA: 60HZ
  • Sensitivity: +18DB – AGL ON-OFF
  • Camera 5.1 Mega Pixels
  • Focus: Manual Adjustable from 30 mm to Infinity
  • Minimum Illumination: 1.5LUX
  • Power Output: 200mW
  • Power Supply: + 8V DC
  • Transmission Signal: Picture
  • Operation Frequency: 1.2Ghz
  • Operation Humidity: 85%RH
  • Output: RF
  • Power Consumption: <=640MW

Receiver:

  • Operation Frequency: 1.2GHz
  • Output: 200mA
  • Transmission Frequency: Video RCA Jack
  • Voltage: 9-12V DC
  • Power Consumption: 1.2W

Instruction:

  • Connect the antenna with the receiver.
  • Plug power jack of DC 9V/12V power supply into the power socket of the receiver (the power indicator is on).
  • Connect the output of receiver with monitor with AV wire.
  • Plug power jack of DC 8V power supply into the power socket of the camera (battery of the same voltage is acceptable).
  • Fine tune to the desired position (until the image of wireless camera is received).
  • Adjust the lens of the camera to best position.

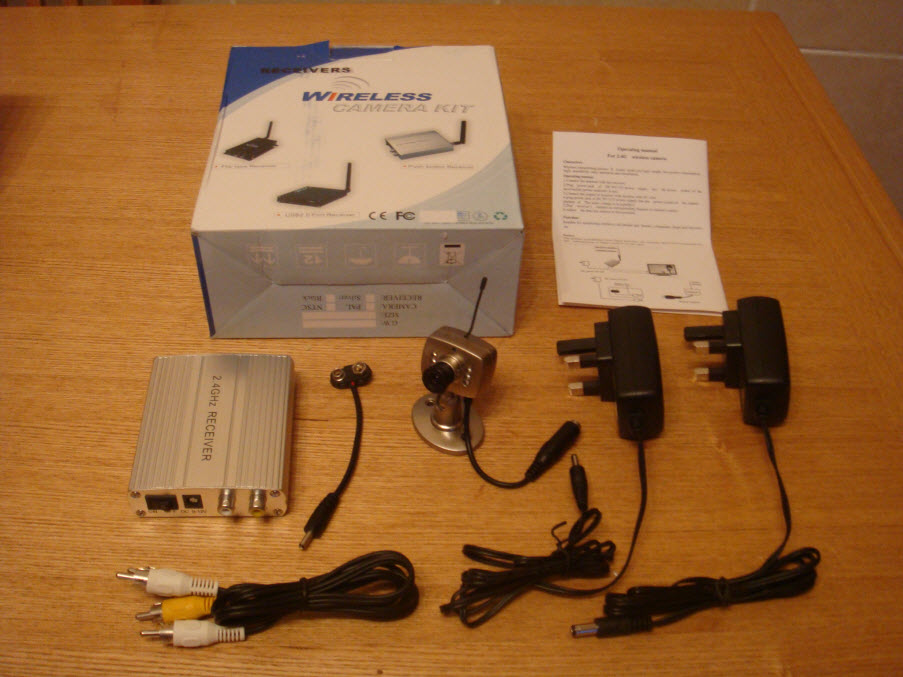

Package Includes:

  • Wireless Camera
  • Wireless Receiver

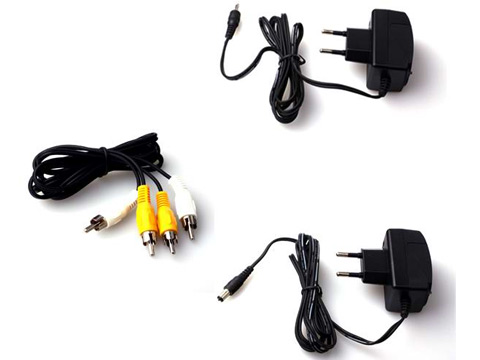

  • Adapter for Camera
  • Adapter for Receiver
  • Antenna
  • AV Cable
